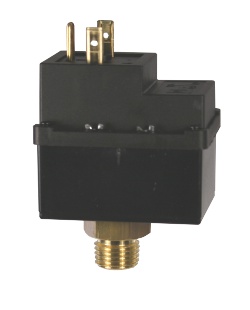

Pressure switch PS 3
The PS 3 is a Pressure switch with fixed switch-point settings.He is factory preset according to customers specification and is not adjustable.
| Applications: |
- In particular use in serial production
- 1 change-over contacts
- Max operating pressure up to 43 bar
- High and low pressure switches
- With appliance socket (IP65)
- Easy installation
- Standart factory setting from stock in smann volumes
- Customer specific versions, mnimum order quantity 100 pcs.
|
| Options: |
- Micro switch for narrow pressure differenzen
- Gold plated contacts
|
| Function: |
- A: Pressure control, automatic, hp and lp
- R: Pressure control, external manual reset, hp and lp
- W: Pressure limiter, autmatic TÜV range 1-5 (high temperature range 6, O, F, X only)
- B: Pressure cut-out, external manual reset (high temperature range 6, O, F, X only)
- S: Safety pressure cut-out, internal manual reset TÜV range 1-5 (high temperature range 6, O, F, X only)
|
| Pressure range: |
- 1: Ip max 6 bar
- 3: Ip max 16 bar
- 4: hp max 30 bar
- 5: hp max 30 bar
- 6: hp max 43 bar
|
| Pressure connectors: |
- A: 7/16"-20 UNF male (range 1-5), with console
- G: G1/4" fermale brass
- K: 1m cap. tube w. flare nut 7/16"-20 UNF (range 1-5), with console
- L: 1/4"-ODM solder with 1m cap. tube (range 1-5) with console
- M: 1/8"-27 NPT with snubber (range 6 only)
- R: G 1/4" male brass
- S: 7/16"-20 UNF fermale, schrader depressor (range 6 mit snubberr)
- U: 6mm ODF brazing, with console (range 6 with snubber)
- X: 1/4"-ODF brazing, with console (range 6 with snubber)
|
